Description

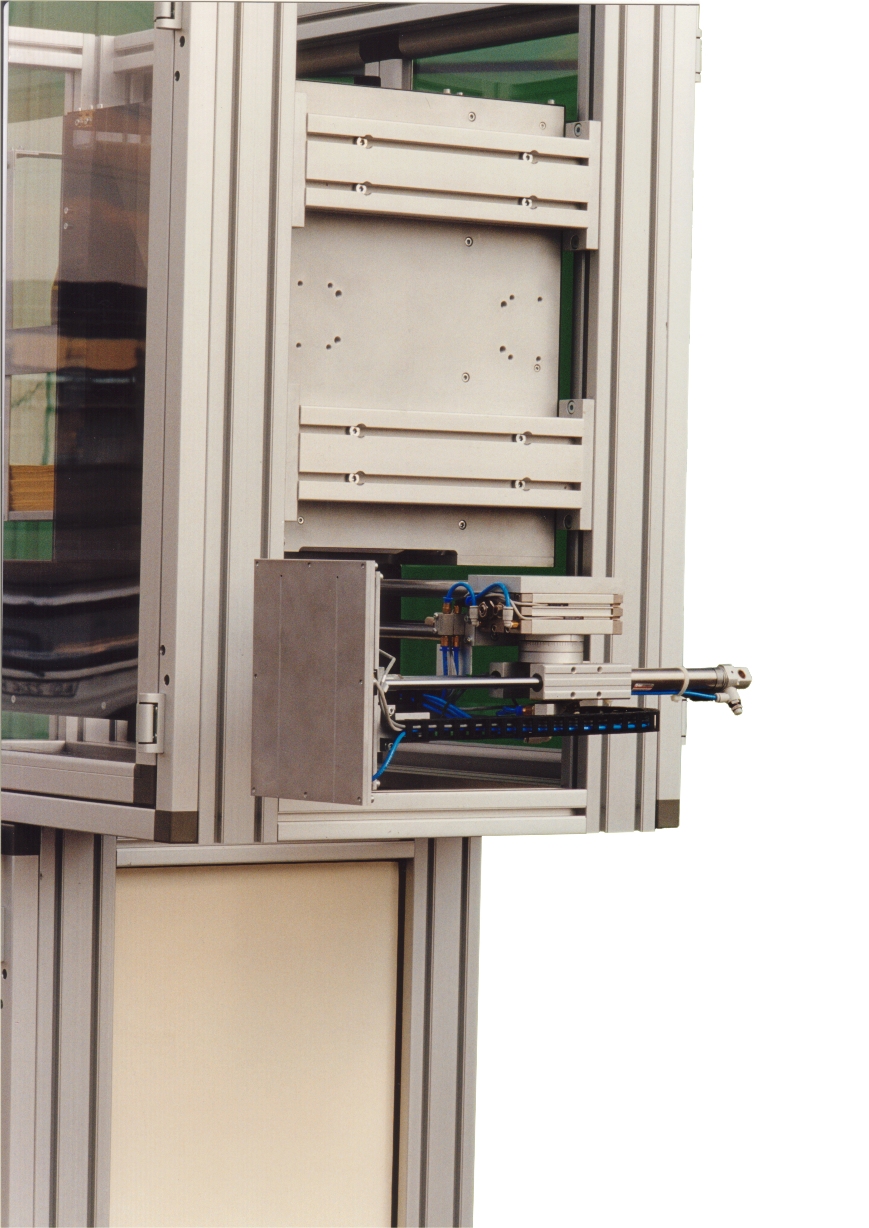

Real-time print & apply system for front and side label application on static product. The system is associated with a 4-to-6-inch wide print engine, capable of printing barcodes, images and variable data.

Features:

• Applicator case in stainless steel
• Autonomous power supply independent of the printer
• Applicator control logic board based on microcontroller
• Color 4,3″ TFT LCD touch panel (480 x 272 pixel); IP65 for applicator diagnostics and parameter setting  (optional, 7″)
• Stroke linear actuator 600 up to 1050 mm; 4 guiding rods mounted on recirculating ball bearings
• Rotary actuator for 90 ° movement of the applicator plate
• Short stroke linear actuator
• Applicator plate mounted on spring compensator columns
• Optical fiber for detecting label on plate
• Contact proximity to stop piston stroke
• Outside work area micro applicator
• Dust filter with reducer and pressure gauge for air supply
• Reel holder group:  external diameter 250 mm; internal diameter 40 mm
• Stop & go rewinding unit with stepper motor and associated drive
