Description

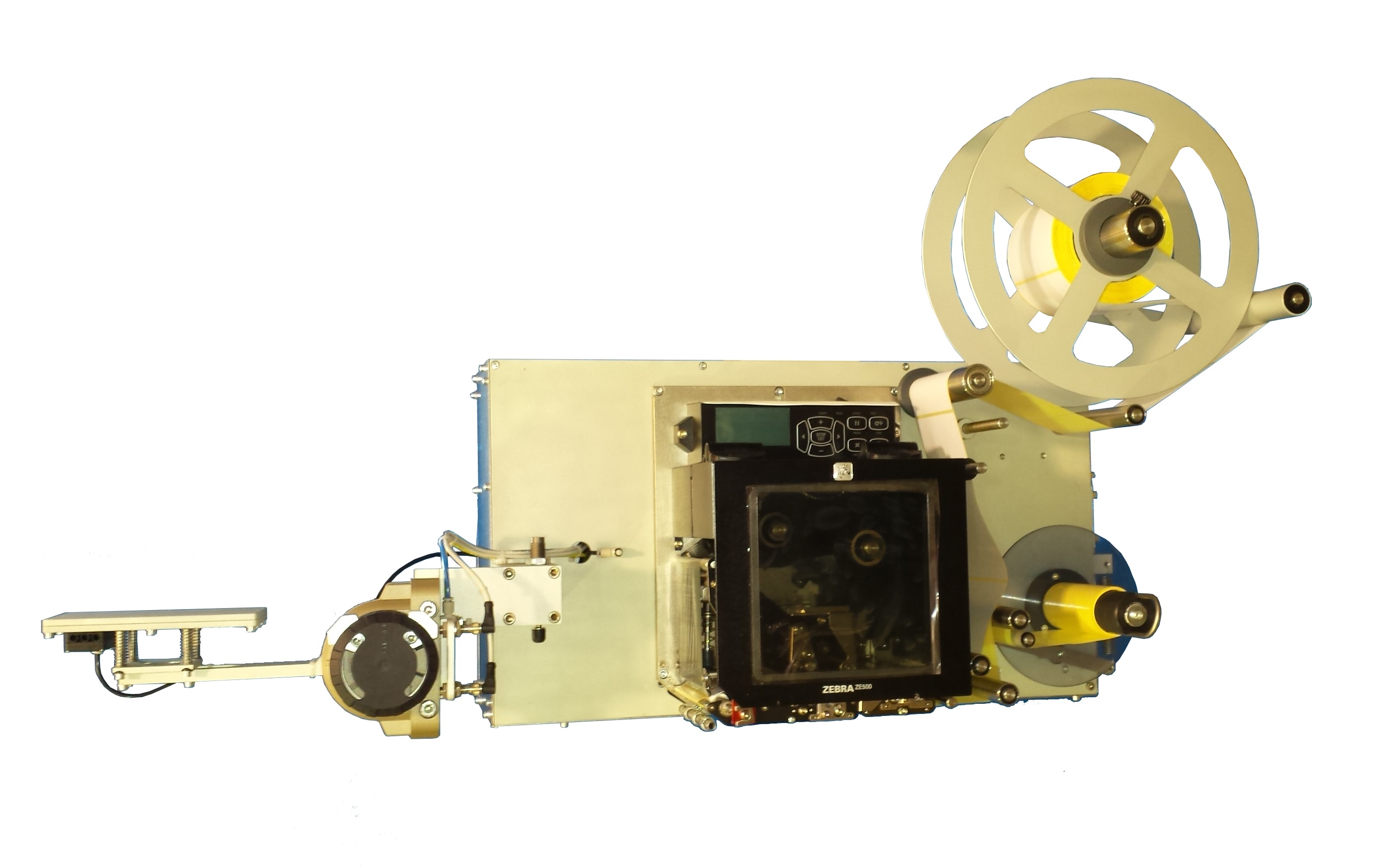

Real-time print & apply system (left or right) with rotating arm, for application of labels on front or rear of a still product; associated with 4-6″ width print engine consisting of:

• Autonomous and independent power feed
• Solenoid valve battery
• 4,3″ TFT LCD color touch panel for applicator diagnostics and parameter setting
• Steel chassis for touch panel and applicator board
• Label holding via Venturi effect vacuum generator
• Rotating applicator group with arm length to be defined
• Applicator plate sized according to label format
• Optical fiber for label detection on plate
• Contact proximity between plate and product
• Filter and pressure gauge for air supply

To be integrated with various kinds of print engines (Zebra, Intermec etc.).
